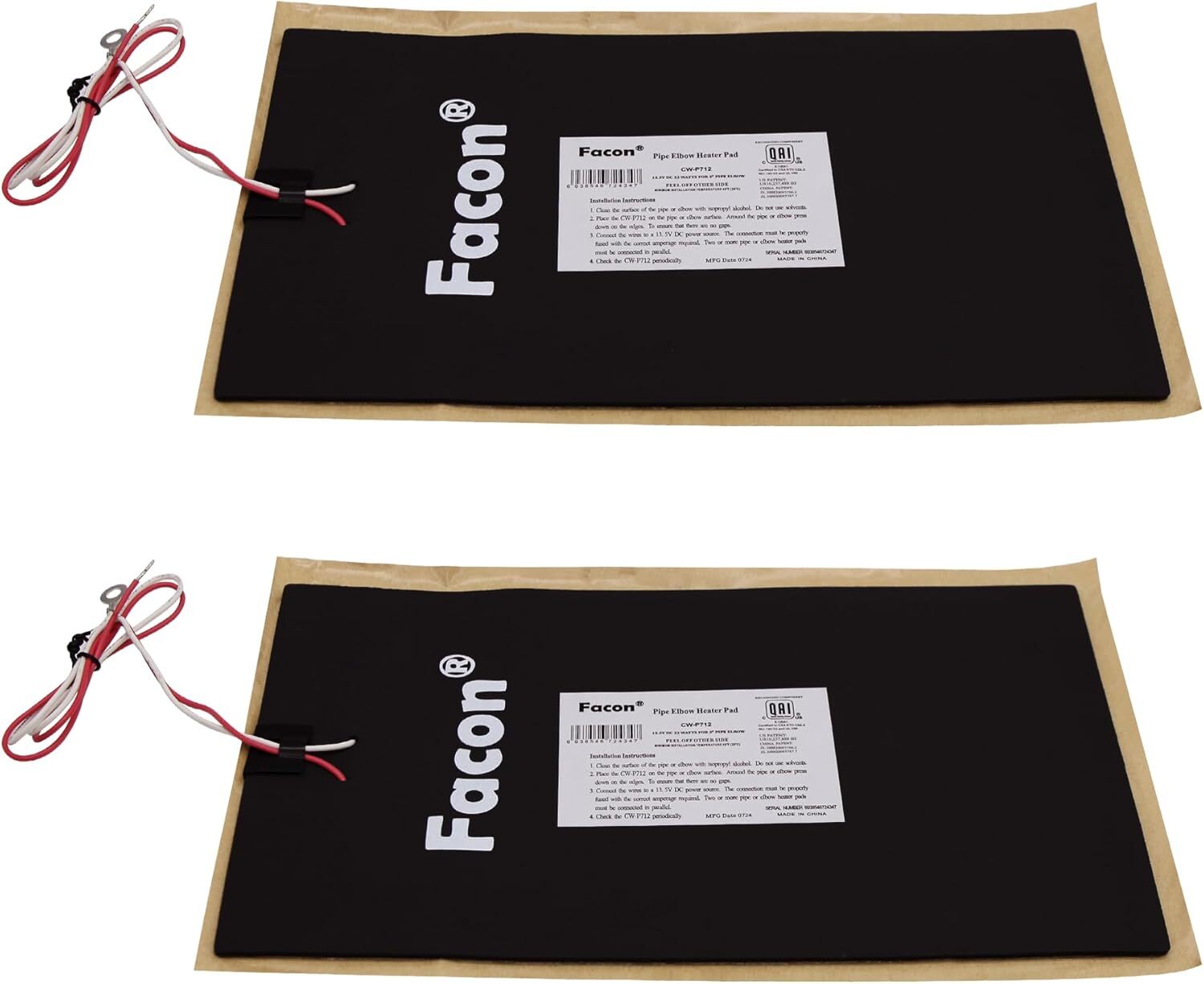

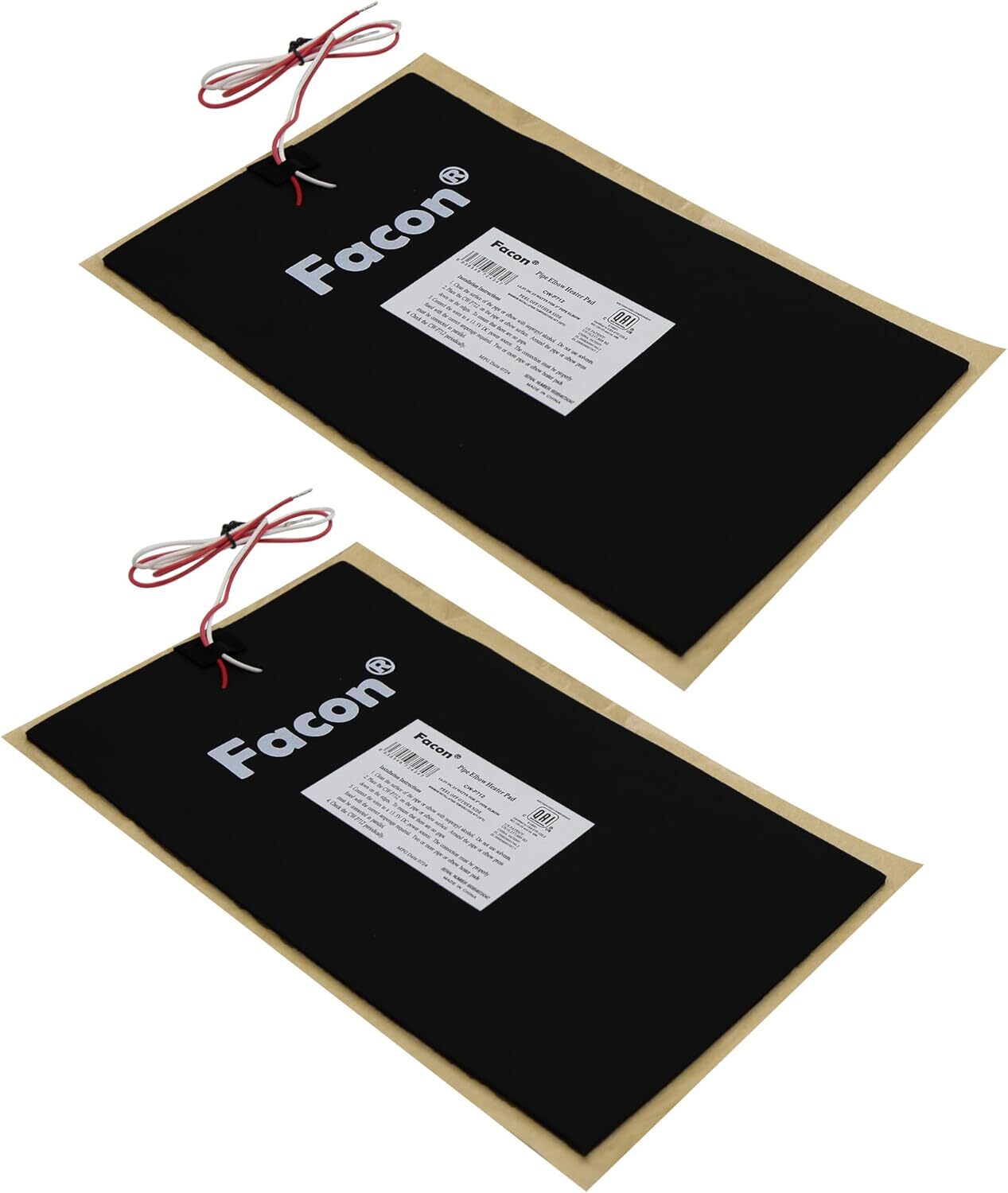

12V DC RV pipe heating pad, fabric fleece polyester construction, self-adhesive foam for wrapping RV drain pipes. Hardwired 2-wire design with no plug, no built-in thermostat, requires separate manual ON/OFF switch to prevent pipe freeze-up on RVs, travel trailers & motorhomes.
• 【Exclusive Technology】
Facon heating pads are professionally engineered to safeguard RV water systems from freezing in cold winter, compatible with RV, Camper, Trailer, Mobile home and marine vessels. Full patent and certification covered; Genesis Lighting Co., Ltd is the exclusive authorized manufacturer of all Facon heating pads.
• 【12V Pipe Heater Operation Guide】

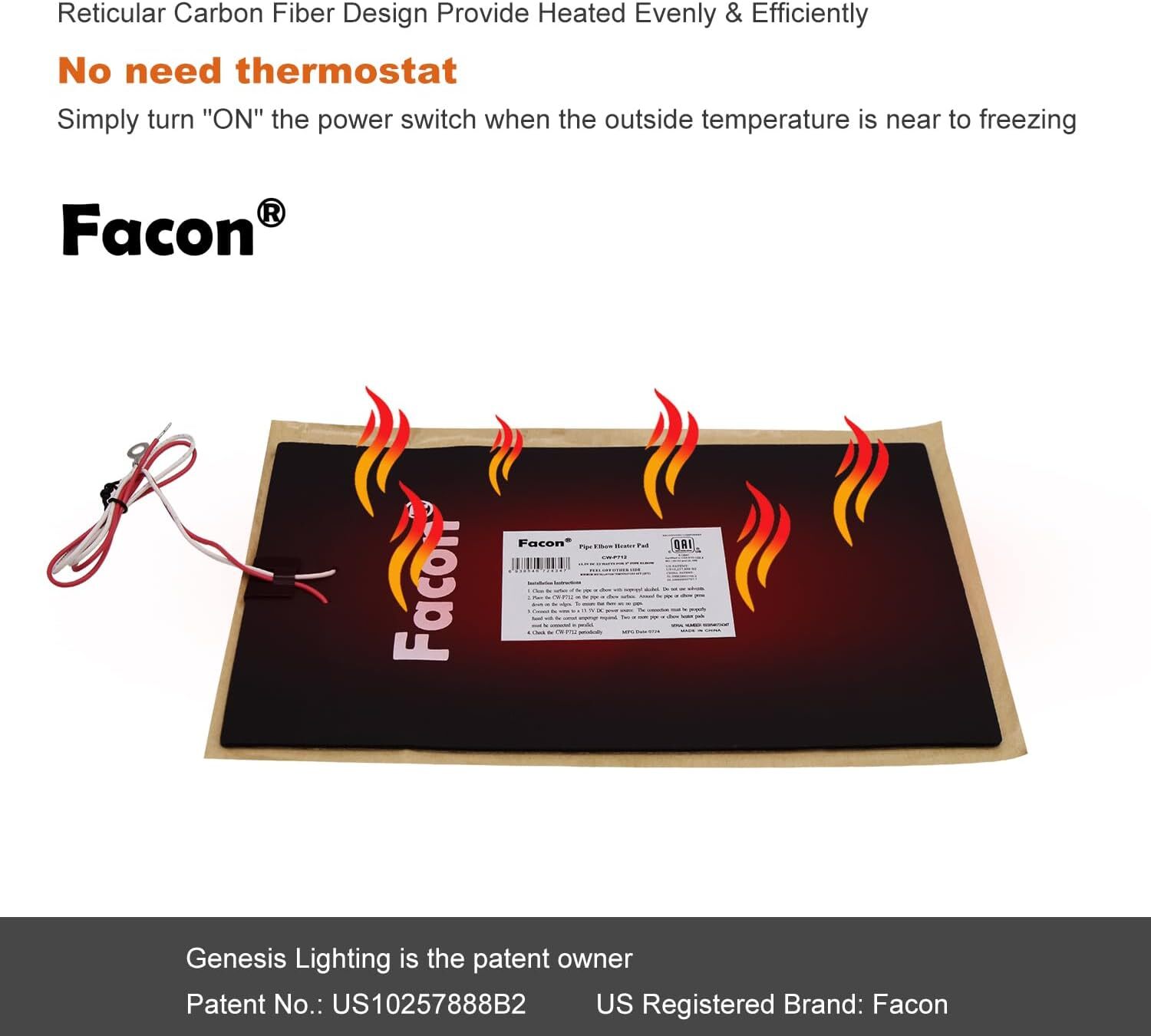

No built-in automatic thermostat. Flip the power switch ON when outdoor temperature approaches freezing point; switch OFF when ambient temperature stays above freezing, holding tank fluids are fully drained, summer arrives, or the RV is stored unused. If your RV lacks an independent dedicated switch for this heating circuit, matching switches are available separately in our store.
• 【Application Specs】

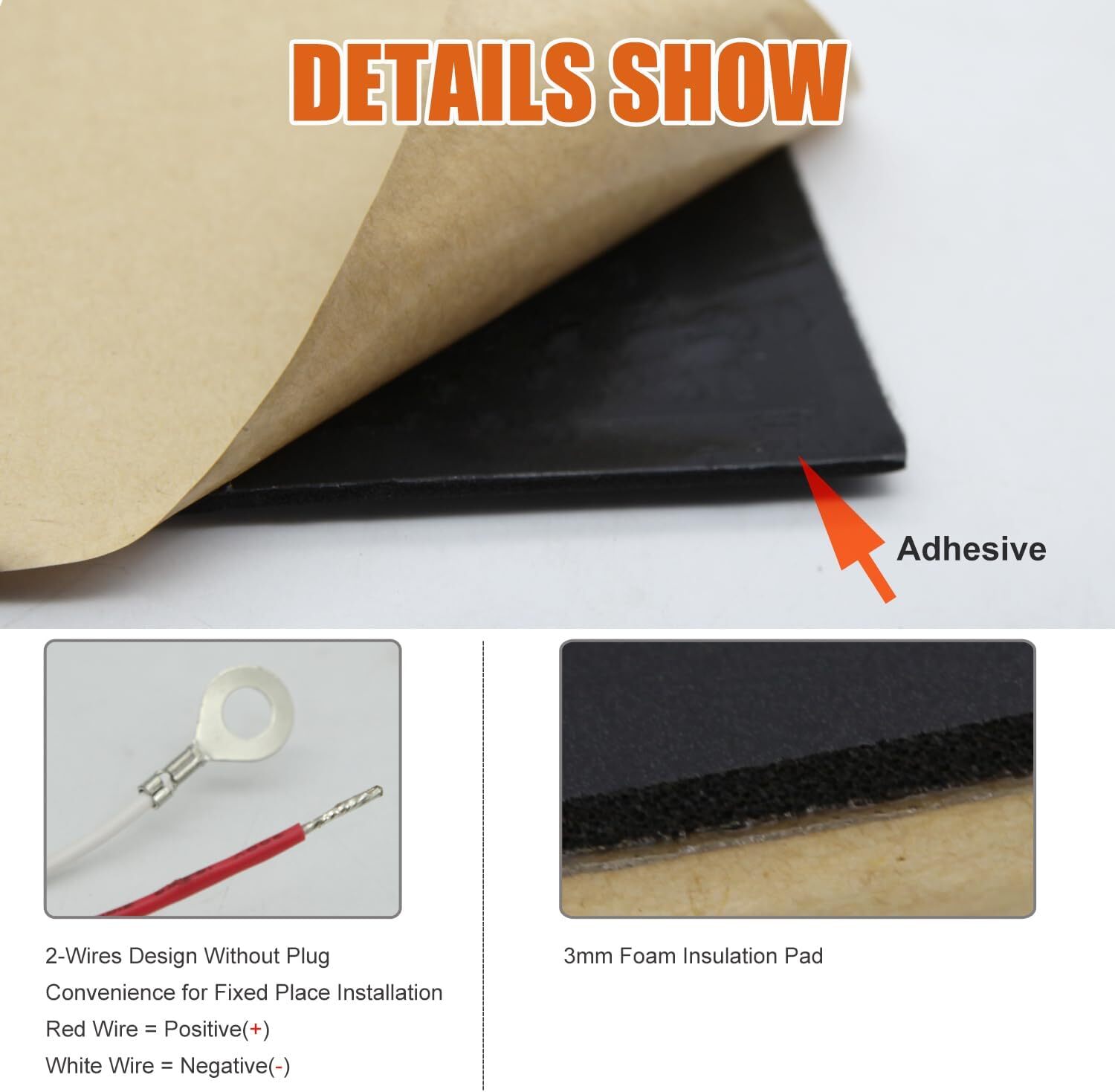

6'' x 18'' heating pad fits standard 1-1/2 inch RV drain pipes perfectly. Built with 3mm thick self-adhesive foam insulation, allowing quick wrapping around pipe surfaces without extra auxiliary tools.
• 【Hardwired Easy Installation】

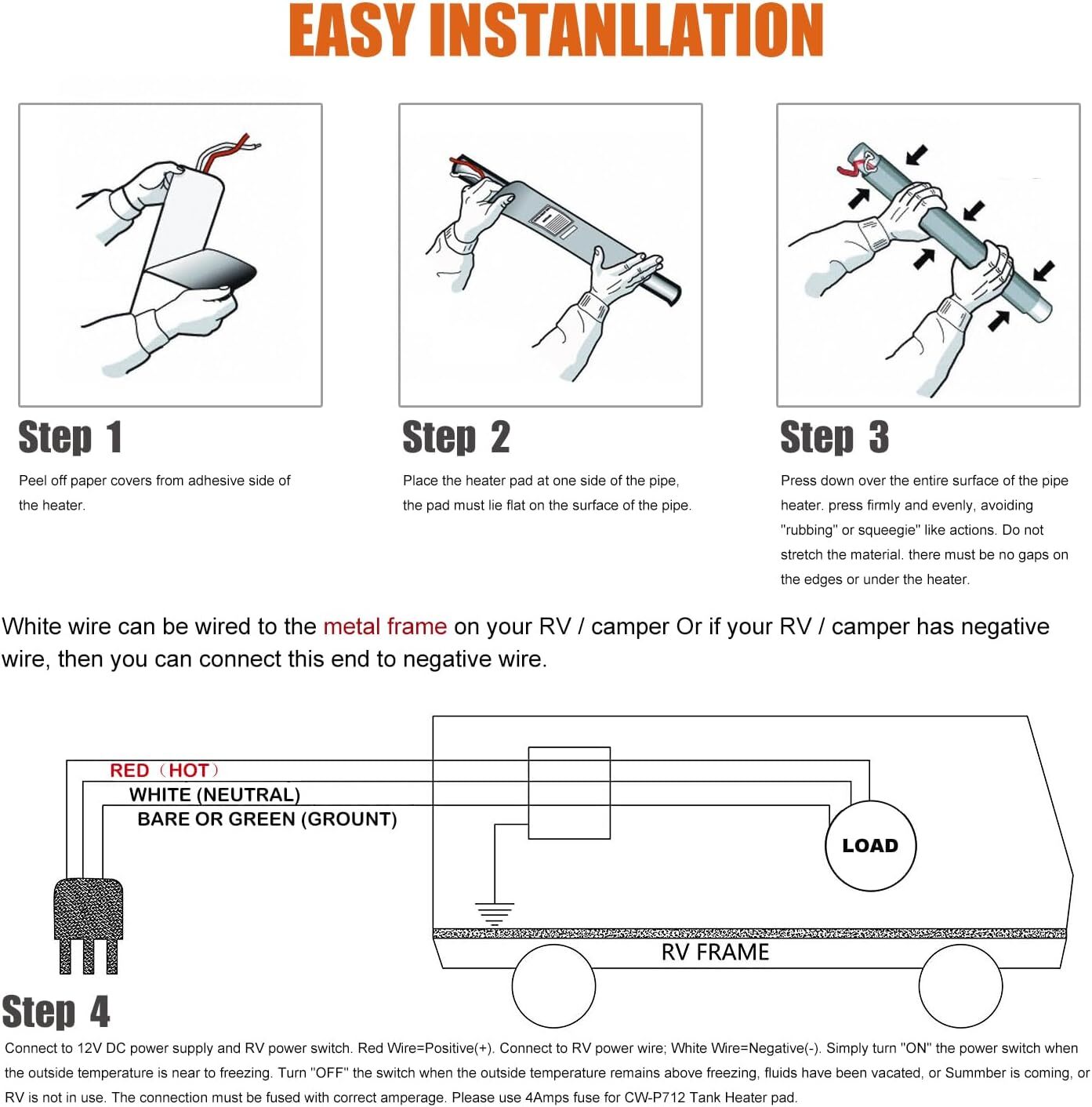

2-Wires Design without plug for permanent fixed wiring. Connect the pad to a 12V DC power supply and RV control switch. Red Wire = Positive (+); White Wire = Negative (-). If you are not familiar with 12V DC wiring, consult a qualified RV technician for proper installation.
• 【1-Year Warranty】
Passed US standard QAI quality certification. We take full accountability for all product quality issues, backed by a 1-year limited warranty.
Important Information
Safety Information
- This product can reach high temperatures and cause burns. Do not touch the heating pad surface while it is operating.
- Never leave the heating pad unattended while powered on.
- Ensure the heating pad never makes contact with flammable materials.
- Cut off all power via the system control switch or circuit fuse when the heating pad is not in use.
- This product shall not be used by children or people with limited physical, sensory or mental capabilities without full adult supervision.
- Consult your healthcare provider prior to use if you have any medical conditions that may be worsened by heat exposure.
Indications：Prevents freezing of pipes in RVs, travel trailers, and motorhomes.
Product Description
If you have more than 6 inches of piping between your holding tank and the drainage termination valve (gate valve), you will need to consider heating them as well. Your gate valve is the lowest point of any RV holding tank system, and the piping before it is the first to fill, and is also the first to freeze-up due to the lower volume of fluids and no circulation. Heating only your holding tanks will not extend heat out into the drainage piping beyond the mentioned 6 inches, and once the drain pipe freezes up, you will be unable to vacate your tanks. Wire an ON/OFF switch to your pipe, elbow and gate valve heater pads, as they are not regulated by an automatic thermostat.
Product Details
• Material: Fabric, Fleece, Polyester
• Product Dimensions: 18 x 6 x 0.1 inches; 7.83 ounces
• Voltage: 12 Volts (DC)
• Wattage: 24 watts
• Foam Insulation Thickness: 3.0MM
• Wire Configuration: 2-Wires Design without plug
• Compatible Pipe Size: 1-1/2'' drain pipe
