# Short Overview

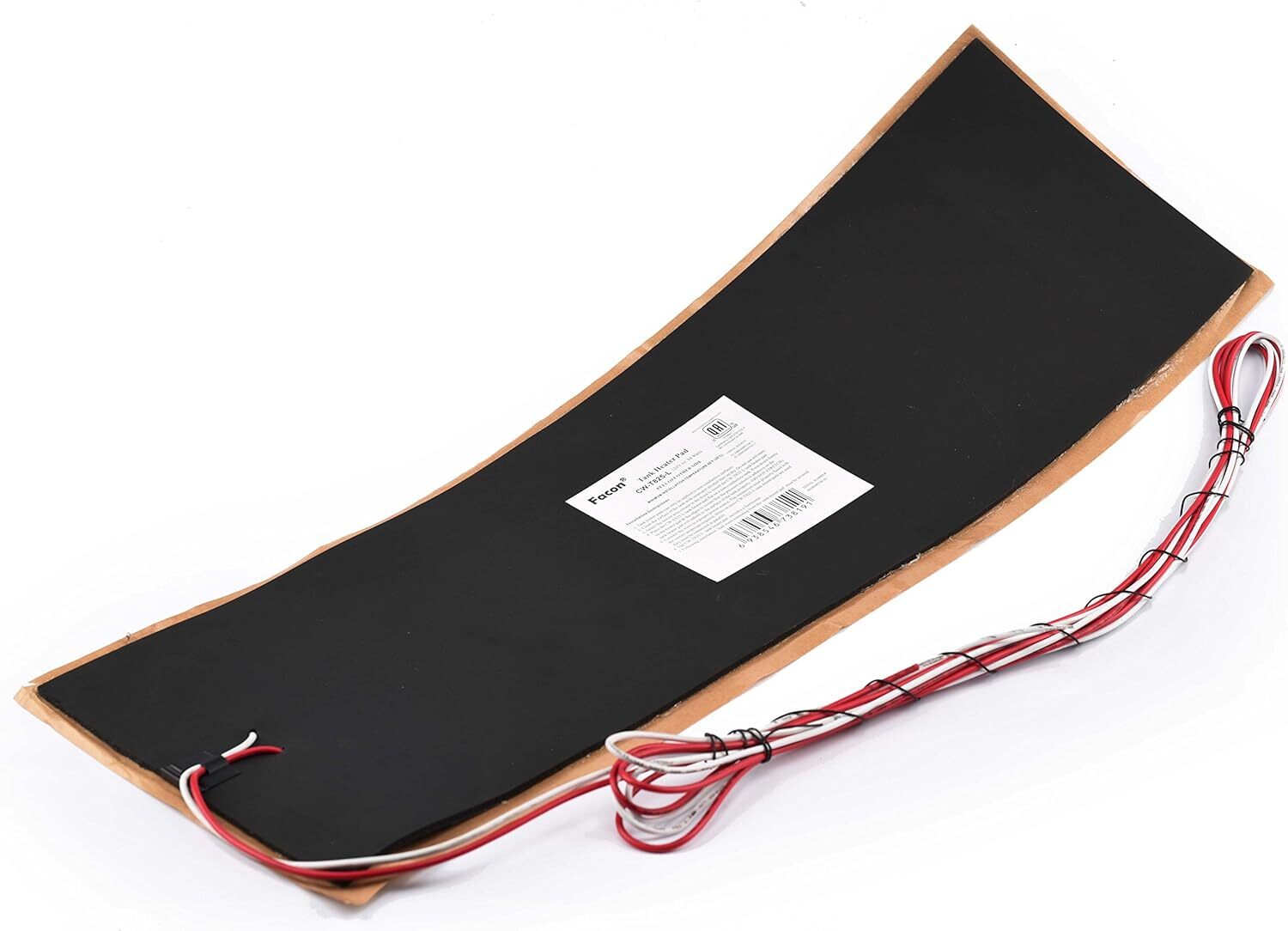

Facon CW-T825 / CW-T825-P 120V AC narrow rectangular RV holding tank heater pad with built-in thermostat, self-adhesive polyurethane mat for shore power RVs to stop water tanks freezing in cold winter.
# About this item
• 【Solve RV Freezing Plumbing Troubles for Winter Camping】
If you want to keep using your RV in sub-freezing weather without full winterization or extra antifreeze/skirting, our tank heating pad is your perfect pick. Custom-made for narrow rectangular RV fresh, gray & black holding tanks, it stops tanks from freezing and supports normal water system use for cold camping and boondocking. Designed for RVs connected to shore power, it can be used alone or matched with pipe & elbow heater pads for full pipeline freeze protection. Facon’s patented heating pads protect RV tanks, pipes and steps against freezing, bringing reliable winter water access for RV, camper, trailer, mobile home and marine boats. We hold complete product patents and certifications as the exclusive manufacturer. Properly sized & installed, it delivers steady anti-freeze protection once cold weather arrives.
• 【Smart Automatic Thermostat Control】
Built-in thermostat auto switches ON at 45°F (±5°F) and OFF at 68°F (±5°F). It automatically maintains safe tank fluid temperature and avoids overheating damage, no frequent manual adjustment needed. Two wiring versions for your choice: hardwired 2-wire design with 36-inch lead wire, or ready-to-use 72-inch (183cm) 2-prong plug cord for direct shore power connection.
• 【Application】 Pad Size 8’’ x 25’’ fits narrow rectangular RV fresh, gray and black holding tanks. 3mm Foam Insulation Pad with self-adhesive make it easy installation, no extra facility required. Special Feature: Lightweight. Rated 120V AC, 84W, 0.7A.

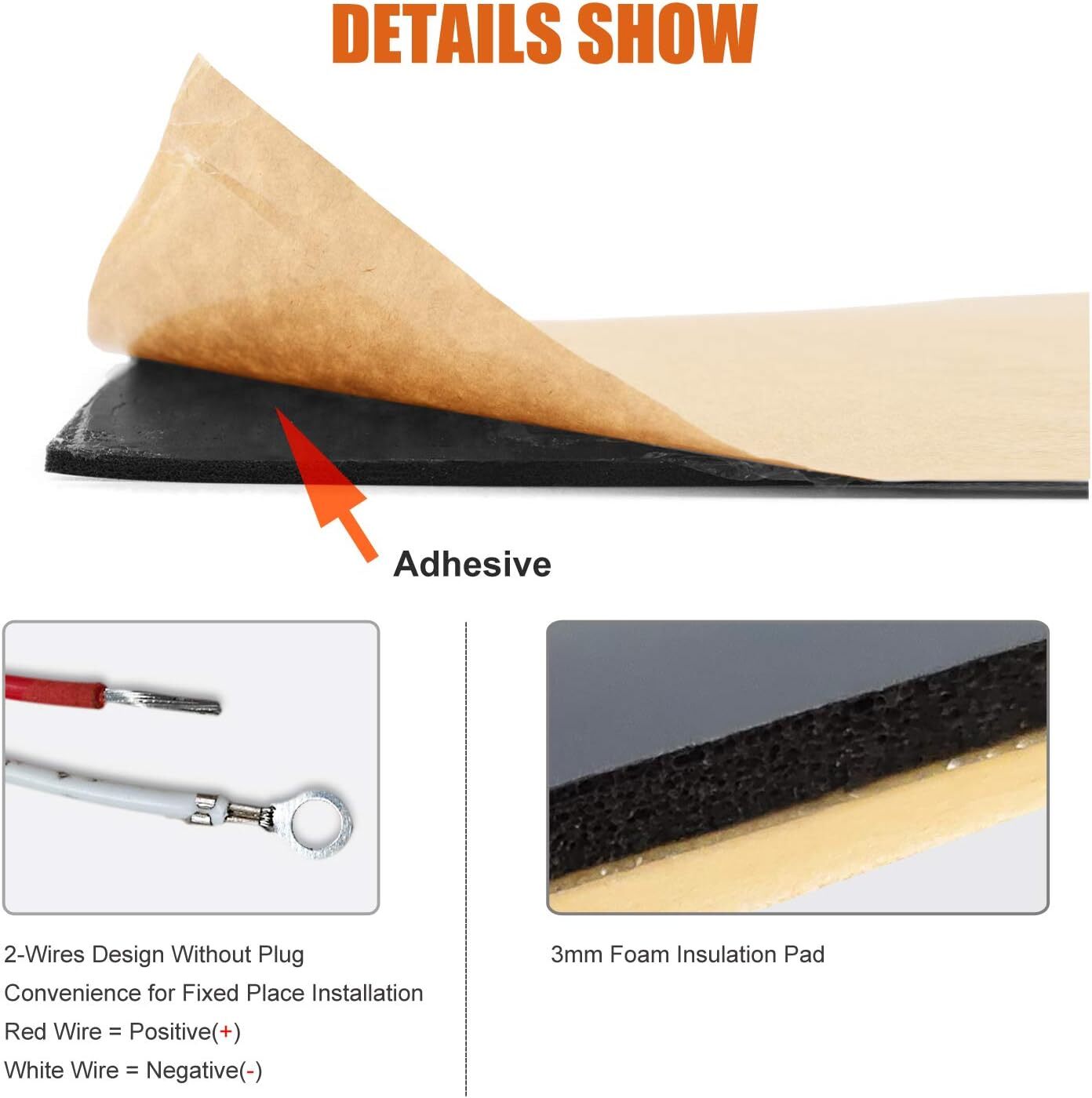

• 【Easy Installation】 Single-sided heating with built-in adhesive heating element. Simply peel off backing paper and stick or fully wrap the pad onto the holding tank for stable heat transfer. Two versions available:
1. CW-T825: 36-inch 2-wire hardwire design, Red Wire=Positive (+); White Wire=Negative (-), connect to RV shore power circuit.If you are not familiar with AC wiring, consult a qualified electrician for installation.
2. CW-T825-P: 72-inch (183cm) 2-prong power cord, directly plug into standard 120V AC shore power outlet.
Do not place any items like batteries on top of the heater pad; heavy pressure will damage internal heating elements. The pad stays cool to touch during normal operation. Heater pad should be applied at a minimum ambient temperature of 68°F (20°C).
• 【High Quality Warranty】 Passed US Standard QAI Quality Certification. We take full Responsibility for our products and customer dissatisfaction. One Year Warranty GUARANTEE!
# CAUTION & Operating Instructions
## CAUTION
1. This 120V AC model only works with shore power receptacles, do not connect to 12/13.5V DC RV battery system.
2. Do not install the heater pad on a circuit with a Pump Motor or Microwave Oven.
3. Important Notice: This product designed and tested for use as a heating device for RV holding tank and drainage systems constructed of electrically non-conductive materials.
4. Do not activate the pad if no fluid inside the tank, as this may cause overheating and damage the heating elements.
5. Do not place any objects such as batteries on top of the heater pad.
6. Power socket recommendation: Use 15A GFI-protected 120V AC receptacle; all wiring connections must stay dry and away from liquid puddles to avoid safety hazards. If extension cord is needed, use 15A rated outdoor-grade cord.
## Operating Instructions
• Ensure that the holding tank contains fluid before activating the pad. Fluid must cover the full surface where heater pad attaches.
• Hardwire version: Flip power switch ON when temperature drops near freezing; Plug-in version: Insert the 2-prong cord into shore power outlet.
• The built-in thermostat will automatically turn ON the heater when tank temperature drops to 45°F (±5°F) to prevent freezing.
• The heater will automatically turn OFF once tank temperature rises to 68°F (±5°F).
• Manually cut off power / unplug the cord when outside temperature stays above freezing, fluids are fully emptied from tanks, summer arrives or RV is not in use.
• Ambient temperatures must be at freezing or below and remain in this temperature range while the heater pad is activated. Operation in warmer temperatures could damage your system.
# Specifications
• Dual Models: CW-T825 (Hardwire) / CW-T825-P (Plug-in)
• Brand: Facon
• Product Type: Narrow rectangular 120V AC RV holding tank heater pad

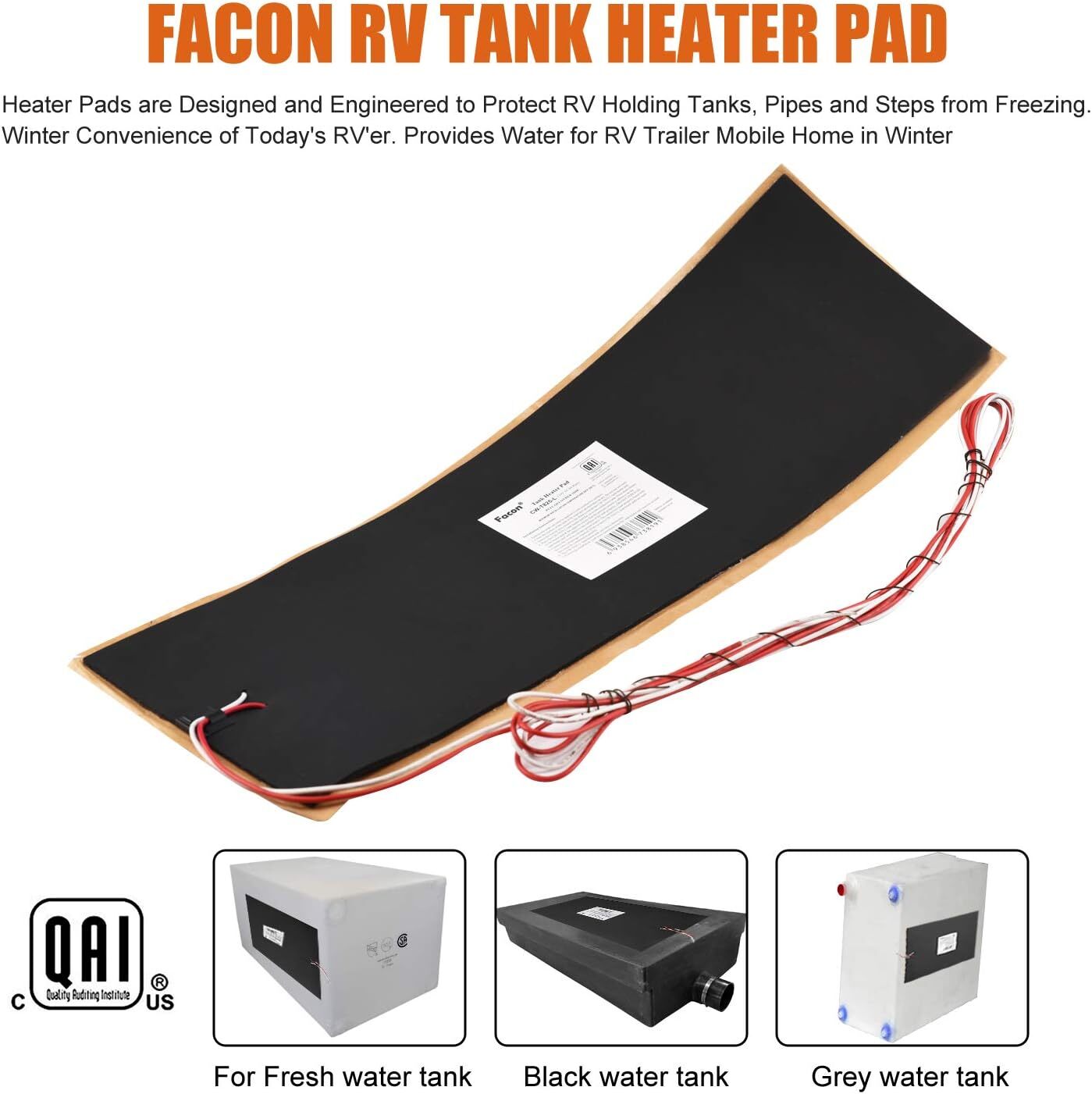

• Fits Tank: Narrow rectangular RV fresh, gray and black holding tanks

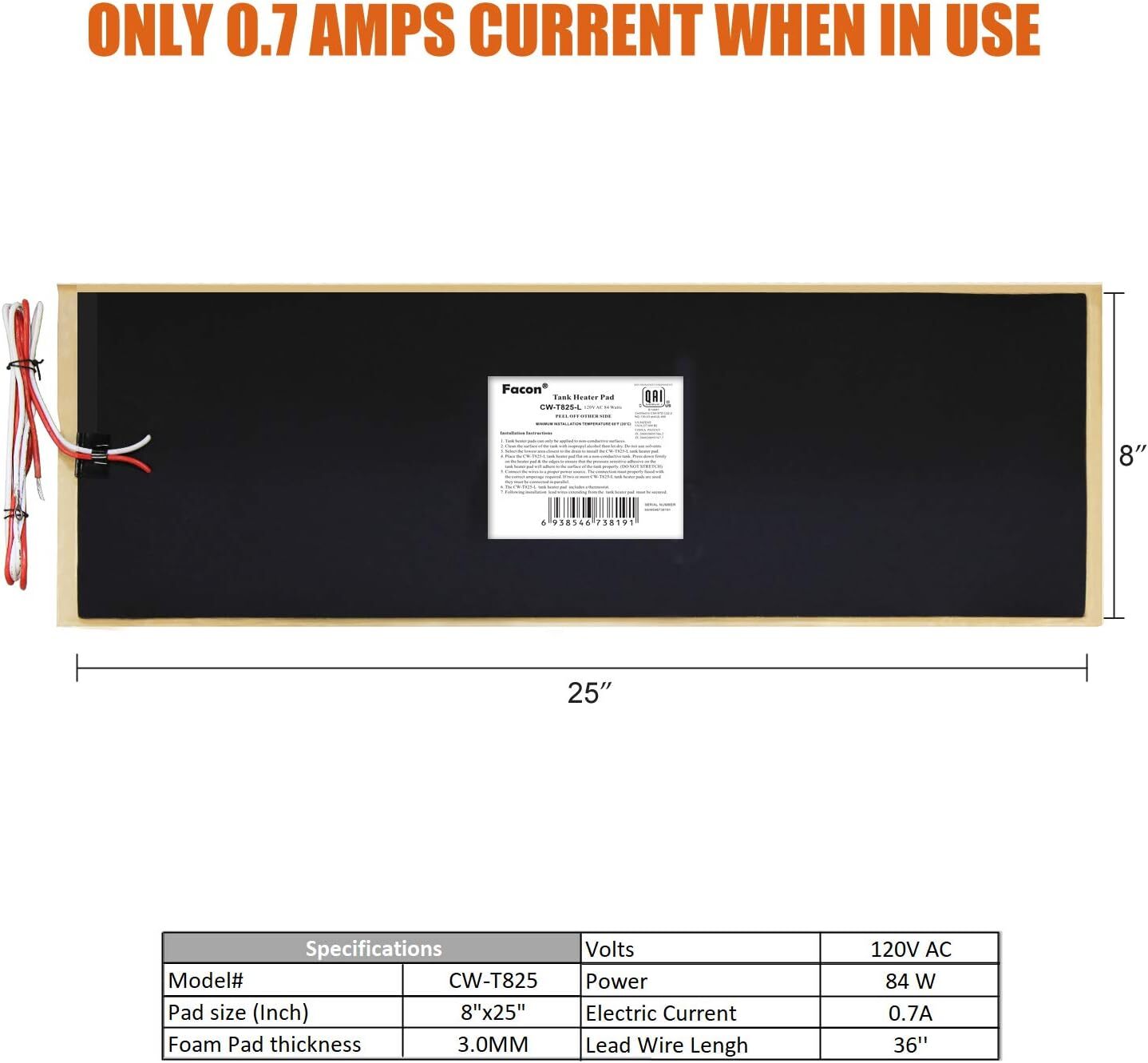

• Pad size (Inch): 8" x 25"
• Foam Pad thickness: 3.0MM
• Material: Polyurethane
• Special Feature: Lightweight, Built-in automatic thermostat, two power connection options
• Volts: 120 V AC
• Power: 84 W
• Electric Current: 0.7A

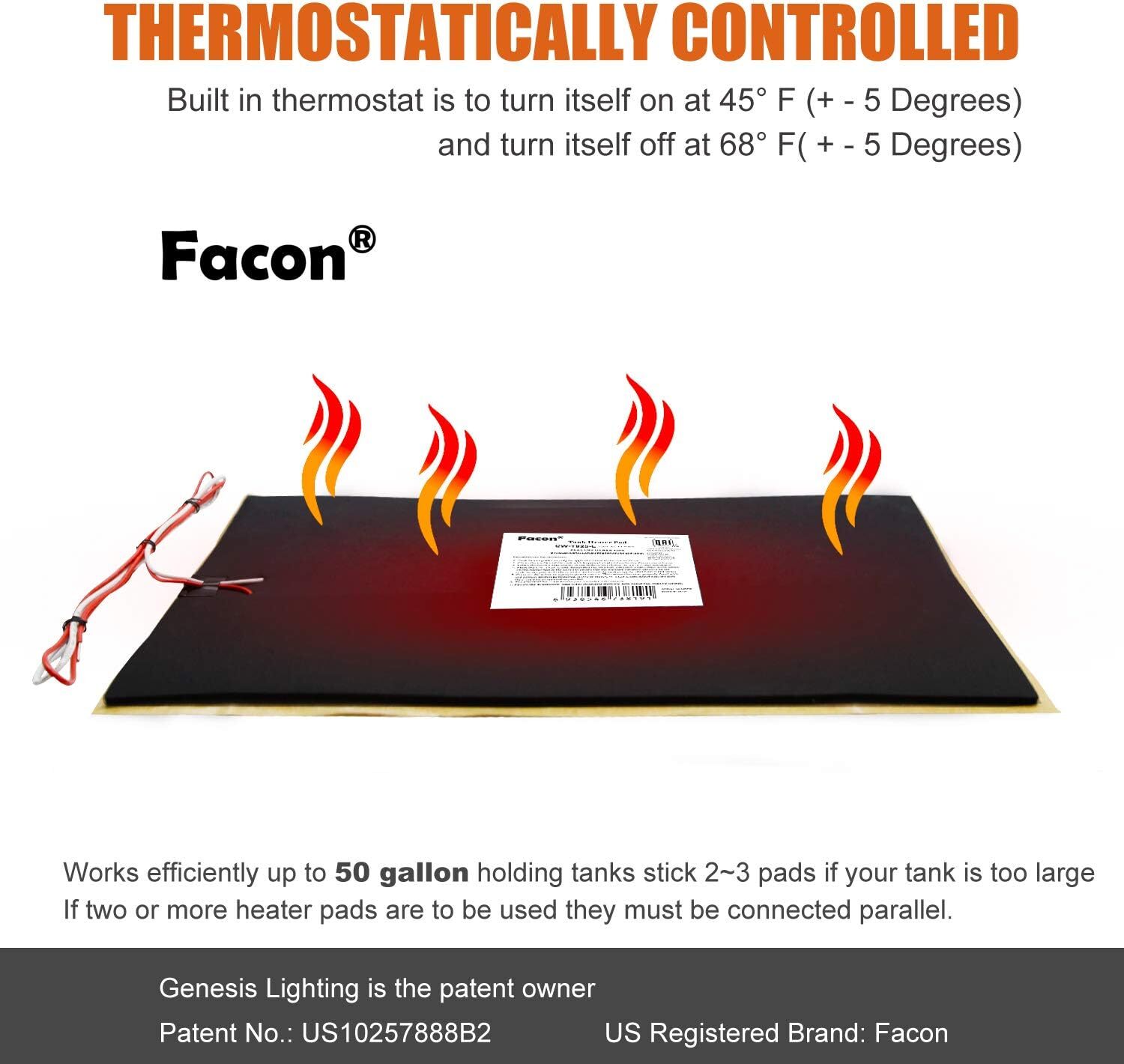

• Thermostat Trigger Temp: ON at 45°F (±5°F), OFF at 68°F (±5°F)
• Mount: Self-adhesive foam insulation pad, stick or wrap around holding tank
• CW-T825 Wiring: Lead Wire Length: 36", 2-wire, Red=Positive (+), White=Negative (-)

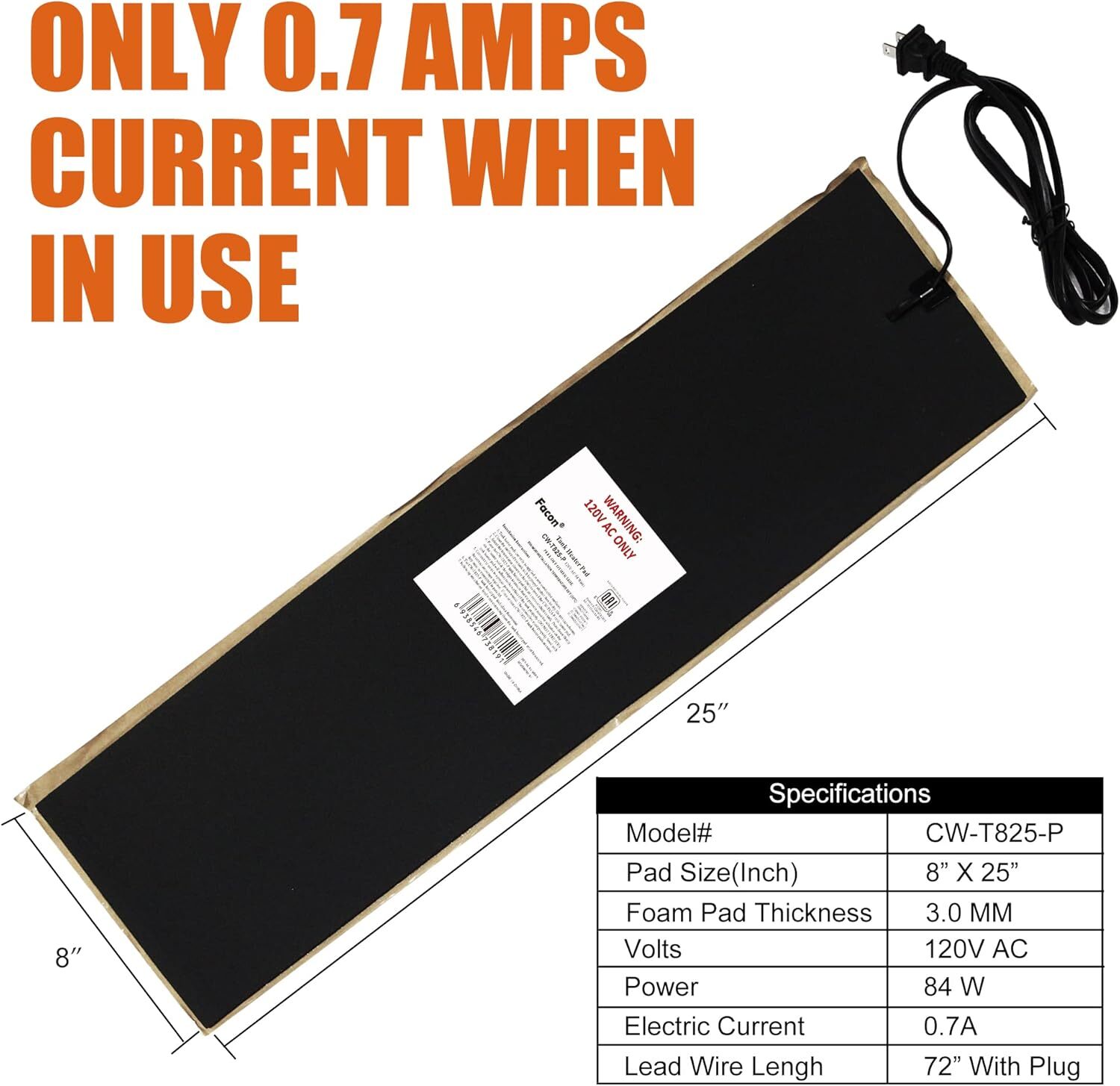

• CW-T825-P Wiring: Lead Wire Length: 72"(183cm), with 2-prong power cord
• Extra Spec Note: The heater pad will not get hot to touch during normal operation
