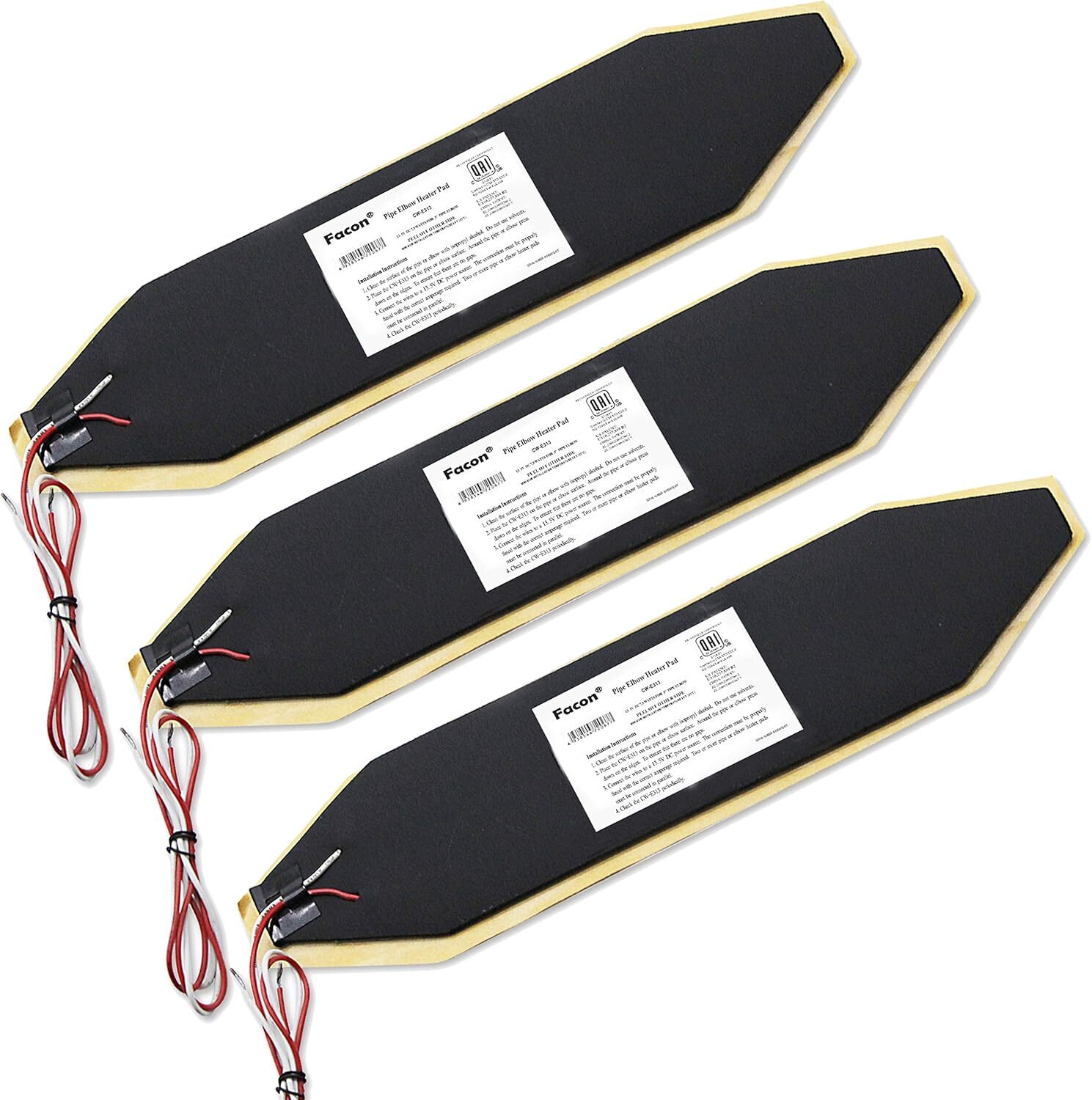

Facon CW-E313 13.5V DC elbow pipe heater pad for 3'' RV pipeline elbows, lightweight polyurethane self-adhesive mat to prevent RV plumbing pipes from freezing in cold weather.
• 【Solve RV Freezing Plumbing Troubles for Winter Camping】
If you want to keep using your RV in sub-freezing weather without full winterization or extra antifreeze/skirting, our elbow pipe heating pad is your perfect pick. Custom-made for RV pipeline bends, it stops pipes from cracking and supports normal use of fresh, gray & black water systems for cold camping and boondocking. It draws much less power than full tank heating pads and can be used independently or matched with RV tank heaters. Facon’s patented heating pads protect RV tanks, pipes and steps against freezing, bringing reliable winter water access for RV, camper, trailer, mobile home and marine boats. We hold complete product patents and certifications as the exclusive manufacturer. Properly sized & installed, it delivers steady anti-freeze protection once cold weather arrives.
• 【Simple On/Off Control】
Simply turn ON the switch near freezing weather; switch it OFF when temperatures stay above freezing, tanks are emptied or the RV is unused. Wire the pad to your RV wall switch for convenient control. It cycles continuously to avoid freezing when power is on. Separate heater switches are available in our store if your RV lacks dedicated water tank circuit switches.
• 【Application】 The Pad Size 3’’ x 13’’ works efficiently on 3'' pipe or elbows. 3mm Foam Insulation Pad with self-adhesive make it easy installation, no extra facility required. Special Feature: Lightweight.
• 【Easy Installation】 2-Wires Design without plug - Convenience for fixed place installation. Just wire this pad to 12Volt DC power supply and RV power switch. Red Wire=Positive (+); White Wire=Negative (-). Lead Wire Length: 18".If your RV does not have a dedicated negative wire, consult a qualified RV technician for proper grounding options.
• 【High Quality Warranty】 Passed US Standard QAI Quality Certification. We take full Responsibility for our products and customer dissatisfaction. One Year Warranty GUARANTEE!
CAUTION & Operating Instructions
# CAUTION
1. The model CW-E313 requires 12V DC to operate. This is a 12V DC hardwired heater. Connect to a 12V DC circuit only. Not for 120V AC household outlets.
2. Do not install the heater pad on a circuit with a Pump Motor or Microwave Oven.
3. Important Notice: For best results, install when ambient temperature is above 50°F (10°C).
# Operating Instructions
• Fluids must be present in the areas were Facon heater pad are installed.
• Ambient temperatures must be at freezing or below and remain in this temperature range while the heater pad is activated.
• These heaters are designed to be an anti-freezing system and to work in colder temperatures, operation in warmer temperatures could damage your system.
• Note: “Fluids present” indicates that the volume of liquid has reached the point where it covers the surface area where heater pad are installed.
• Simply turn "ON" the switch when the outside temperature is near to freezing.
• Turn the switch “OFF” when the outside temperature remains above freezing, once any segment (Gray, Black or Fresh) has been evacuated of fluids, or RV is not in use.
Specifications
• Product Type: Elbow heater pad
• Fits Pipe: 3" pipe
• Pad size (Inch): 3" x 13"
• Foam Pad thickness: 3.0MM
• Material: Polyurethane
• Special Feature: Lightweight
• Volts: 13.5 V DC
• Power: 7.5 W
• Electric Current: 0.55A
• Lead Wire Length: 18"
• Wire Definition: Red Wire=Positive (+); White Wire=Negative (-)
• Mount: Self-adhesive foam insulation pad
